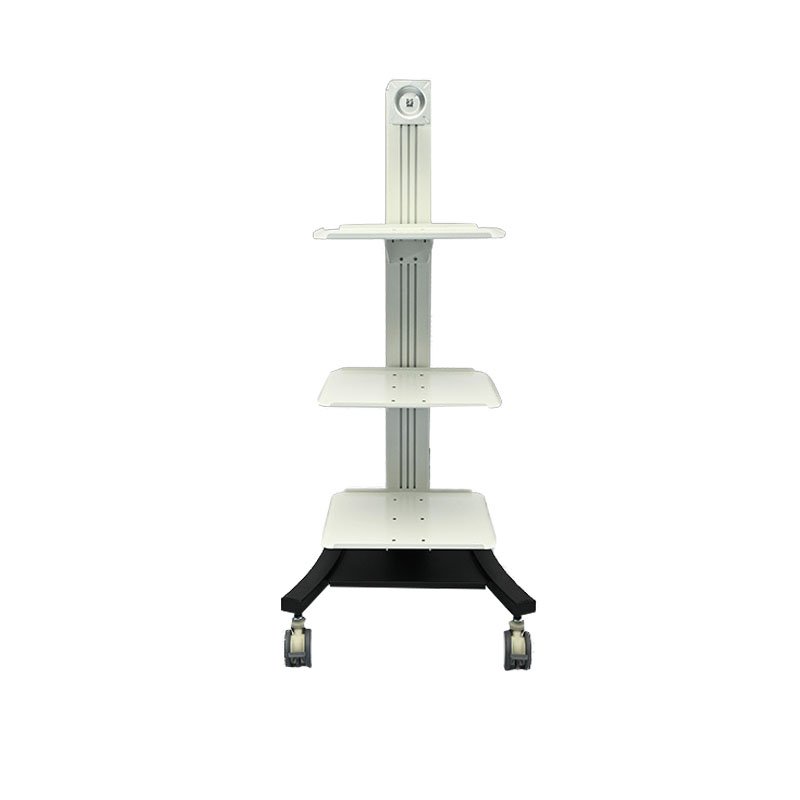

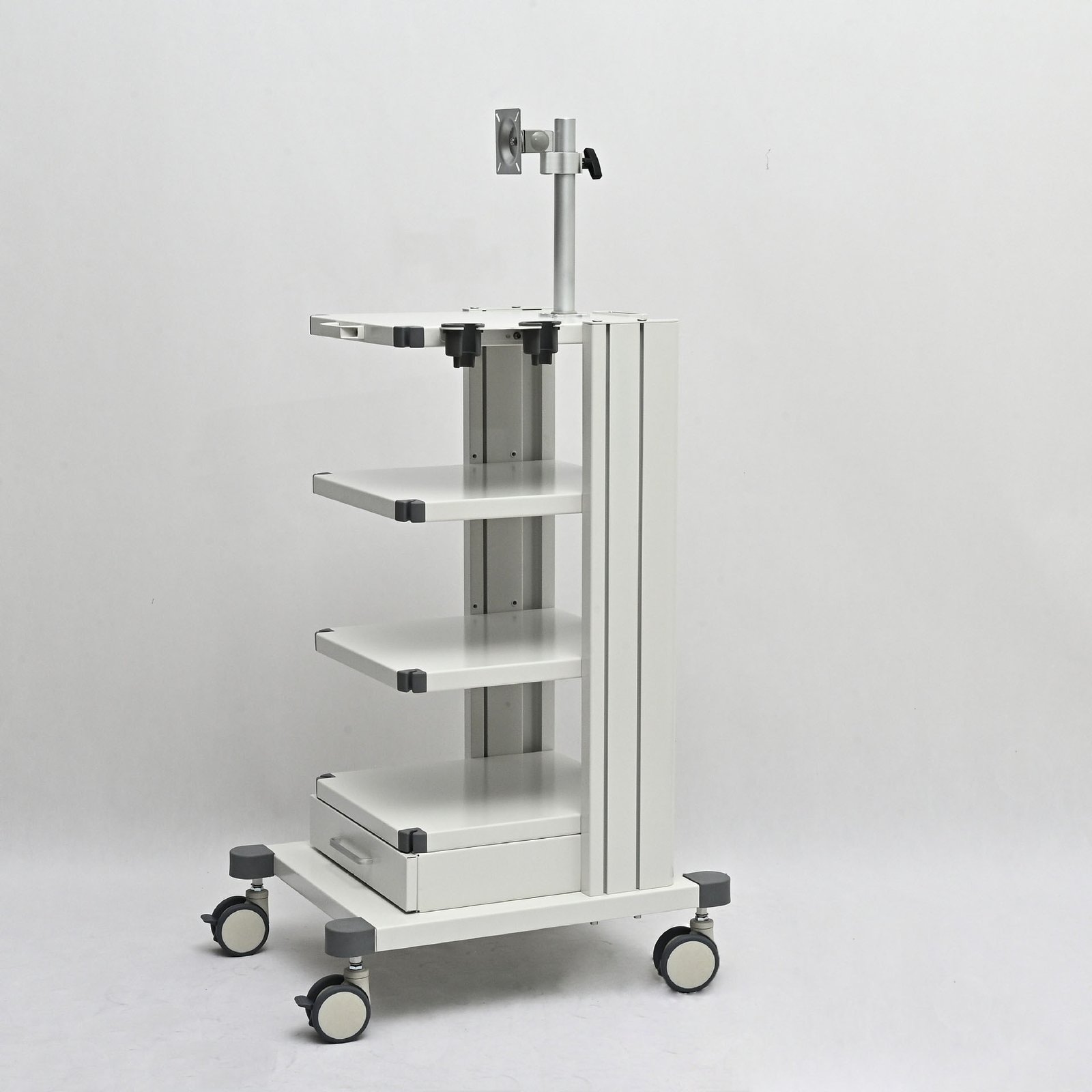

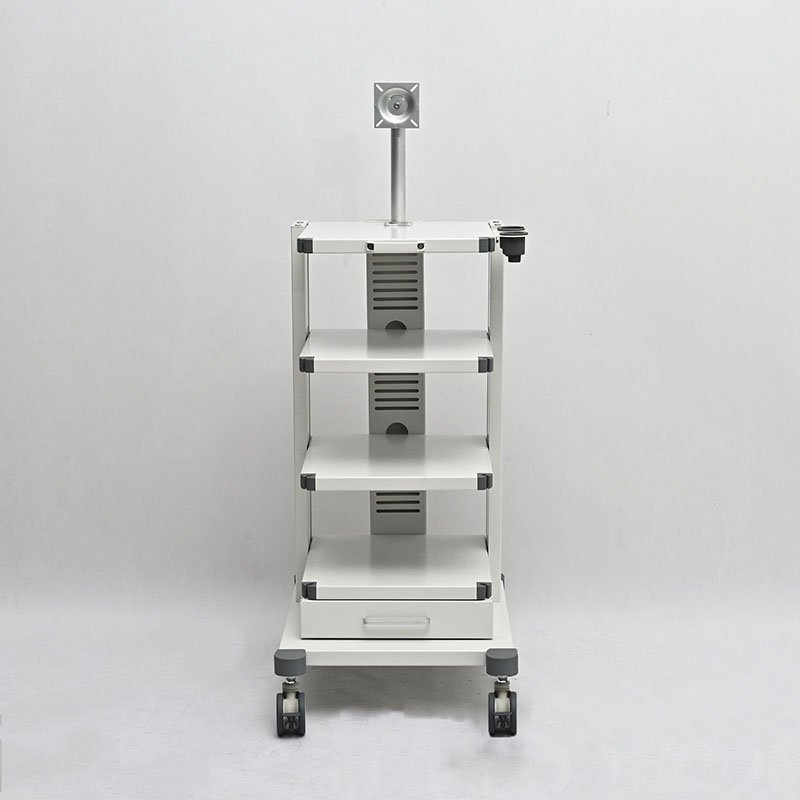

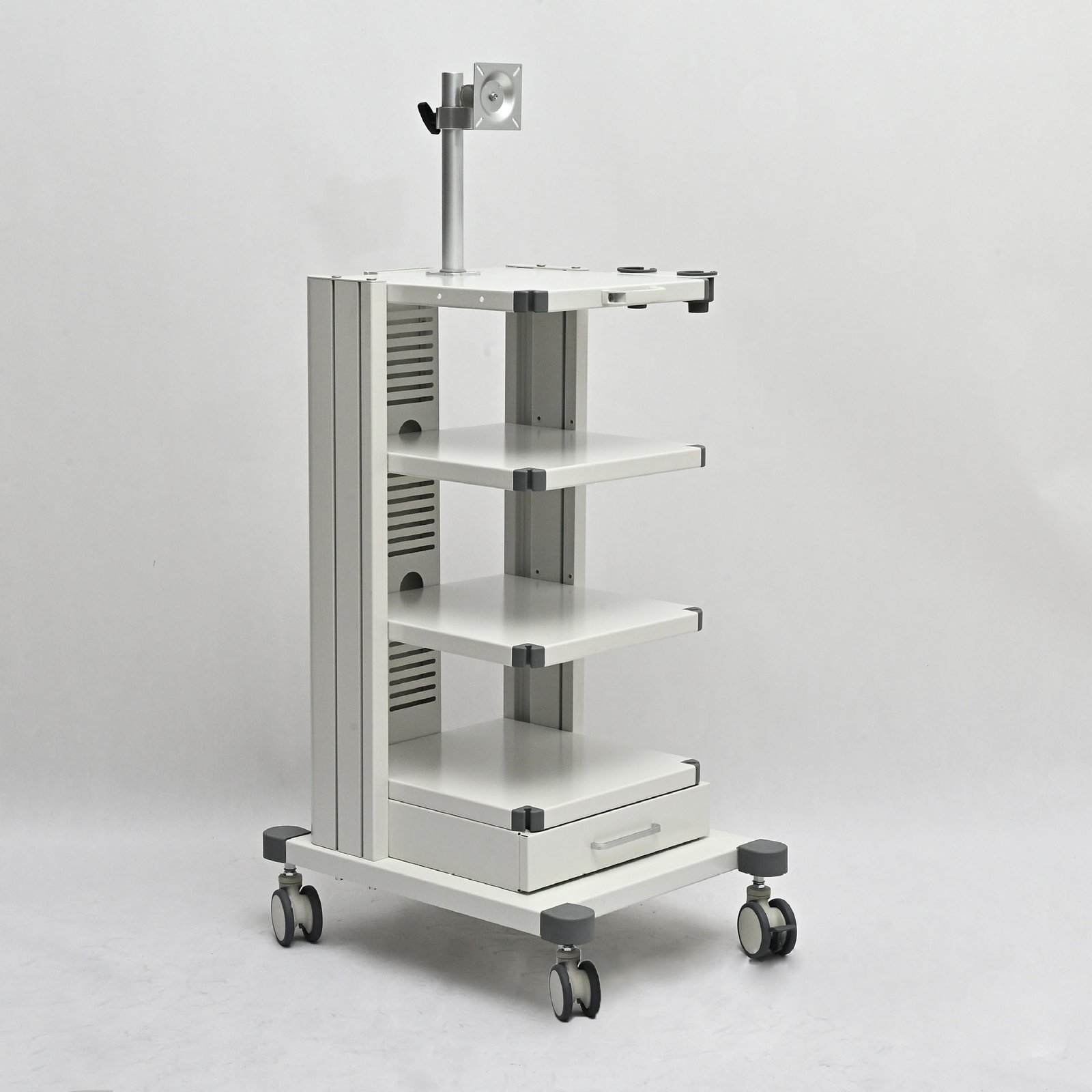

Medical Stainless Steel Cart Fabrication

Description

Precision Engineering, Superior Craftsmanship

We specialize in custom manufacturing of medical-grade stainless steel carts, where each unit embodies our commitment to excellence:

Advanced Manufacturing Processes

• CNC Precision Milling: Multi-axis CNC machining ensures connecting parts with hole position accuracy up to ±0.05mm, enabling seamless component assembly

• Intelligent Sheet Metal Forming: CNC press brakes control bending angles within ±0.1° tolerance, guaranteeing structural integrity

• Laser Precision Cutting: Fiber laser cutting delivers smooth, burr-free edges that minimize secondary processing

Superior Surface Treatment

• Seamless Welding Technology: TIG welding creates uniform, flush welds that eliminate bacterial hiding spots

• Three-Stage Polishing System: Rough, fine, and mirror polishing achieves surface roughness Ra≤0.4μm, meeting medical-grade smoothness standards

• Electropolishing Enhancement: Electrochemical treatment strengthens the passive layer, improving corrosion resistance by over 50%

Rigorous Quality Control System

Certified Material Assurance

• 304/316L medical-grade stainless steel with full material certification

• Spectrometry testing of all incoming materials ensures compliance with ASTM A240 standards

Comprehensive Quality Verification

1. Dimensional Accuracy: 100% inspection of critical dimensions using CMM equipment

2. Sealing Integrity: Dye penetrant testing verifies weld seam integrity

3. Load Capacity Validation: 200% overload testing simulates clinical usage scenarios

4. Corrosion Resistance: 72-hour salt spray testing ensures long-term stability in humid environments

Cleanliness Guarantee

• Final assembly conducted in Class 10,000 cleanrooms

• Medical-grade packaging materials prevent transportation contamination

• Optional third-party biocompatibility test reports available

Specialized Medical Design Features

Ergonomic Functionality

• R2 safety-rounded edges on all exposed surfaces prevent injuries

• Adjustable shelf heights accommodate various medical equipment

• Silent caster systems operate below 45 decibels

Enhanced Cleanability

• Exposed screw-free design eliminates microbial harborage points

• All transitions feature smooth radii for complete cleaning access

• Fingerprint-resistant surface treatment maintains aesthetic appearance

Flexible Customization Services

We offer comprehensive customization options:

• Dimension Customization: Tailored sizes for departmental spatial requirements

• Modular Functionality: Configurable drawers, hooks, IV poles, and accessory modules

• Color Coding Systems: Visual identification solutions for departmental management

• Rapid Prototyping: 15-working-day sample production cycle
