Description
Precision Manufacturing Technology System
High-Precision Sheet Metal Processing
CNC Laser Cutting: 6kW fiber laser systems achieving ±0.1mm tolerance on 20mm carbon steel, bevel cutting in single operation
Multi-Process Bending: Hybrid hydraulic-electric press brakes with ±0.5° angle accuracy, ±0.03mm repeatability
Intelligent Punching: 32-station CNC turret punches handling up to 6mm thickness, minimum hole spacing 2mm
Robotic Welding Integration: 6-axis welding robots ensure continuous sealed welds with >95% penetration, deformation <1mm/m
Professional Surface Treatment Systems
Pre-treatment Processes:
9-stage chemical degreasing/derusting, residual oil <1g/m²
Zinc phosphate coating, 2.0-3.5g/m² film weight, adhesion grade 1
Powder Coating Line:
Automatic electrostatic spraying, adjustable thickness 60-120μm
Complete RAL color range with custom color matching
180℃ curing oven, pencil hardness ≥2H, cross-cut test grade 0
Special Process Options:
Galvanized sheet passivation (color zinc/blue zinc/black zinc)
Dacromet anti-corrosion coating, salt spray resistance >1000 hours
Fire-retardant coatings meeting UL94 V-0 standards
Electrical Safety Engineering Design
Protection Rating Assurance System

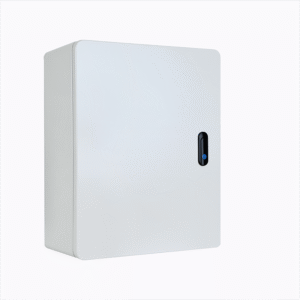

IP54/IP65 Implementation:
Multi-layer door seals: EPDM rubber gaskets + labyrinth water channels
Waterproof cable entries: Double-seal compression design, tensile strength >200N
Removable waterproof base frames for easy field installation
Explosion-Proof Solutions:
Increased safety (Ex e) and flameproof (Ex d) designs per IEC/EN 60079
Flameproof flange surface finish Ra≤3.2μm, gap length >12.5mm
Explosion-proof hinges with interlock systems for automatic power cutoff
Electromagnetic Compatibility Design
Shielding Cabinet Solutions:
Low-carbon steel construction, >60dB shielding effectiveness 10MHz-1GHz
EMI gaskets: Beryllium copper finger stock, conductive rubber, metal mesh
Filter panels: Standard C14/C20 cutouts for direct filter mounting
Grounding Systems:
25×3mm copper ground busbars, full-length tin plating
Multi-point grounding design, resistance <0.1Ω between any points
Grounding symbols compliant with IEC 60417 standards
Ergonomic Operation Design
Door & Access Systems
Heavy-Duty Hinges: 150kg load capacity, 0-135° adjustable opening
Multi-Point Locking: 3-point/5-point mechanisms, handle torque <10N·m
Gas Spring Options: 10,000-cycle lifespan, -30℃ to +80℃ temperature range

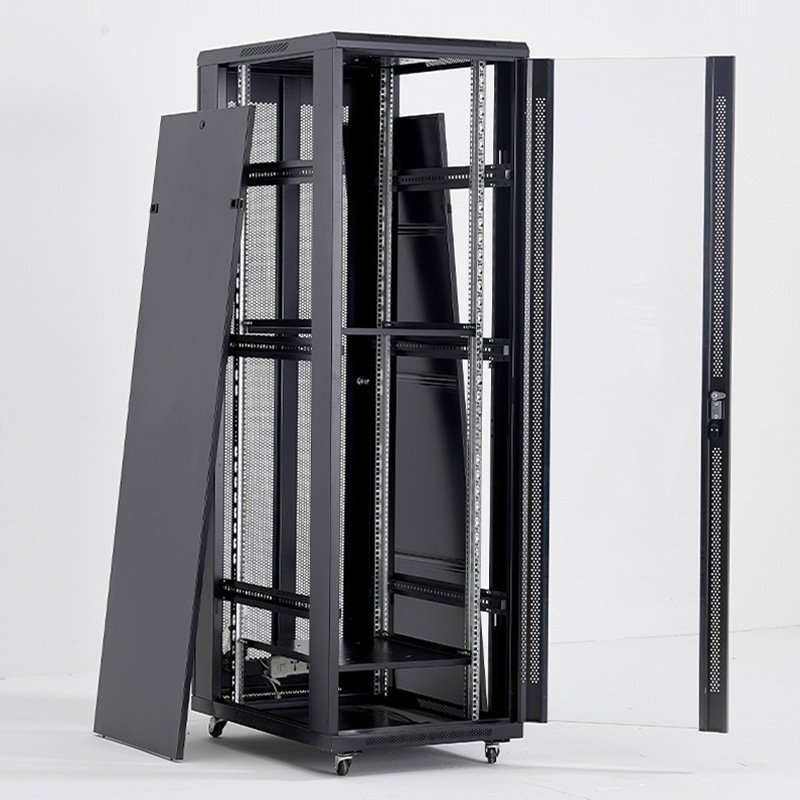

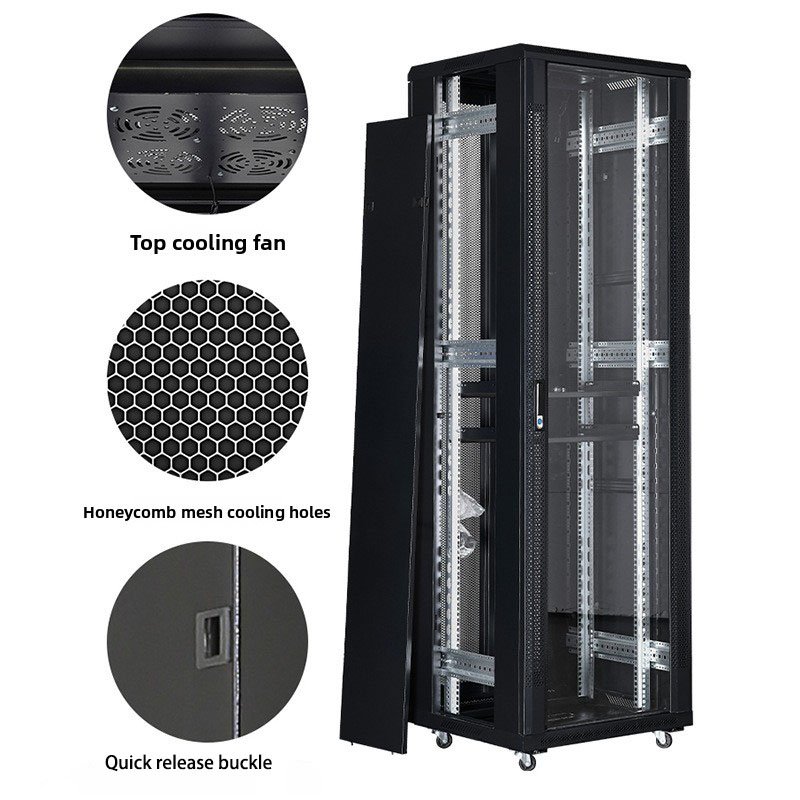

Quick-Release Doors: Tool-free removal reduces maintenance time by 70%
Internal Layout Optimization
Modular Mounting Plates: 25mm standard mounting holes, adjustable depth
Reversible Mounting Rails: Front/rear mounting quick conversion
Cable Management:
Vertical ducts adjustable 50-150mm width
Horizontal cable trays with removable covers
Cable fixings spaced ≤200mm
Visibility & Identification
Double Door Design: Outer protective door + inner transparent window (≥5mm polycarbonate)
Window transparency >85%, anti-fog treatment
Identification Systems:
Laser engraving depth 0.2mm, character height 2.5-10mm options
Anodized aluminum labels, >10-year weather resistance
Safety markings compliant with ISO 3864 standards
Structural Strength & Stability
Load-Bearing Design Standards
Static Loads: Top load ≥200kg, mounting plate load ≥100kg
Seismic Resistance: IEC 61439 compliance, earthquake intensity 8
Lifting Safety: Built-in lifting points with >5:1 safety factor
Frame Reinforcement Technology
2.0-3.0mm premium cold-rolled steel, yield strength ≥235MPa
Cabinet diagonal deviation <2mm, flatness <1mm/m
Optimized stiffener layout, natural frequency >30Hz
Industry-Specific Solutions
Renewable Energy Sector
PV Inverter Cabinets: Outdoor IP65 protection, UV-resistant coating, optimized cooling
Energy Storage Panels: Fire compartmentalization, pressure relief, thermal management
EV Charger Enclosures: Vandal-resistant design, touchscreen cutout accuracy ±0.2mm
Smart Manufacturing
PLC Control Cabinets: EMC shielding, positive pressure ventilation, modular expansion
Robot Control Boxes: Vibration resistance, safety interlocks, compact layouts
MCC Panels: Withdrawable unit structures, arc flash venting
